PS5 & Xbox Cleaning & Maintenance: Internal Cooling Service
Internal console cleaning for PlayStation 5 and Xbox Series X|S. Replay ElectronX disassembles the console, removes accumulated dust and debris, services the cooling system, and refreshes the appropriate thermal interface at the APU and heatsink.
More than an outside dust-off

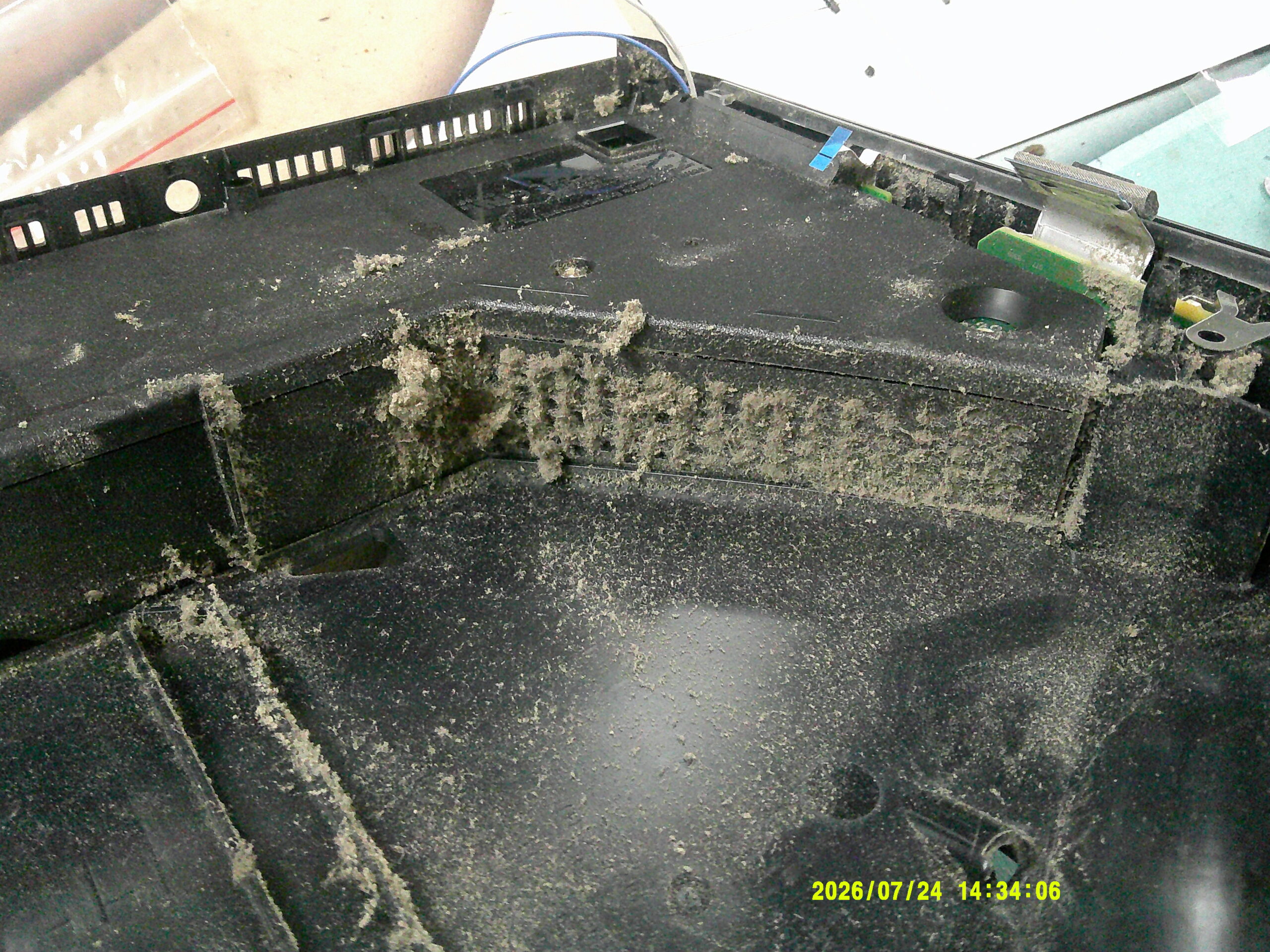

Dust that collects inside a game console can build up around the fan, heatsink, air passages and power-supply area. The outside of a console does not always show what is happening deeper inside the cooling system.
In consoles we have examined at Replay ElectronX, we have found cooling pathways heavily obstructed by accumulated dust and debris. In one documented PS5 inspection, the power supply and main air vents were approximately 90% clogged.
What our cleaning & maintenance service includes
Internal disassembly
The console is opened so accumulated dust and debris can be reached instead of cleaning only the exterior.
Dust & debris removal
Accumulated material is removed from the console and internal cooling pathway, including areas that are not accessible during ordinary exterior cleaning.
Cooling-system service
The cooling system is serviced with attention to the airflow path, fan, heatsink and surrounding cooling areas.
Thermal interface service
The appropriate thermal interface at the APU and heatsink is refreshed as part of the maintenance service.

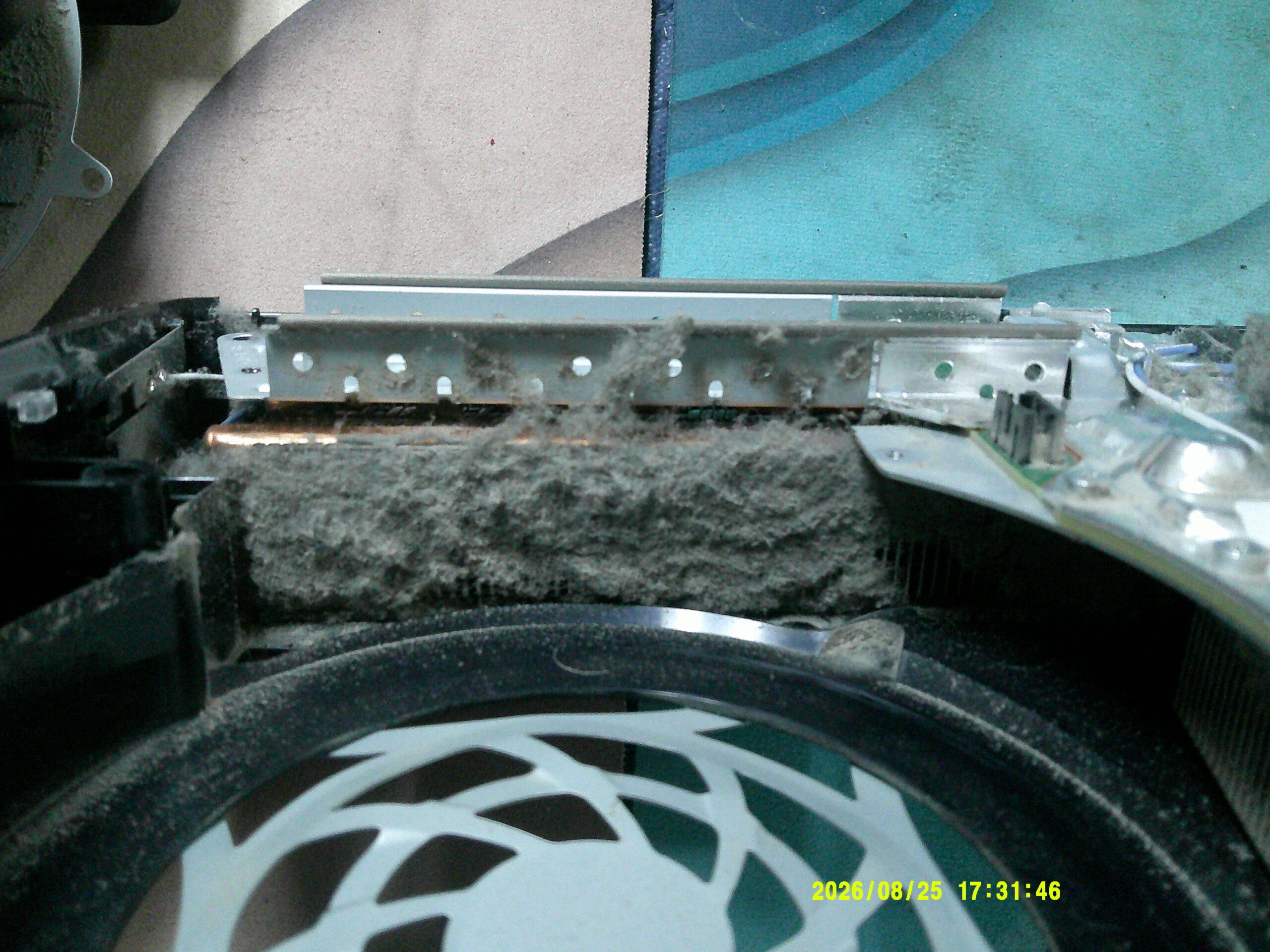

Why internal airflow matters
A console has to move heat away from its major components and then move that heat out of the enclosure. When dust and debris accumulate deep inside the cooling path, the fan may still be spinning while airflow through other parts of the system is restricted.
That is why our maintenance service addresses the internal cooling path rather than only cleaning the visible vents.

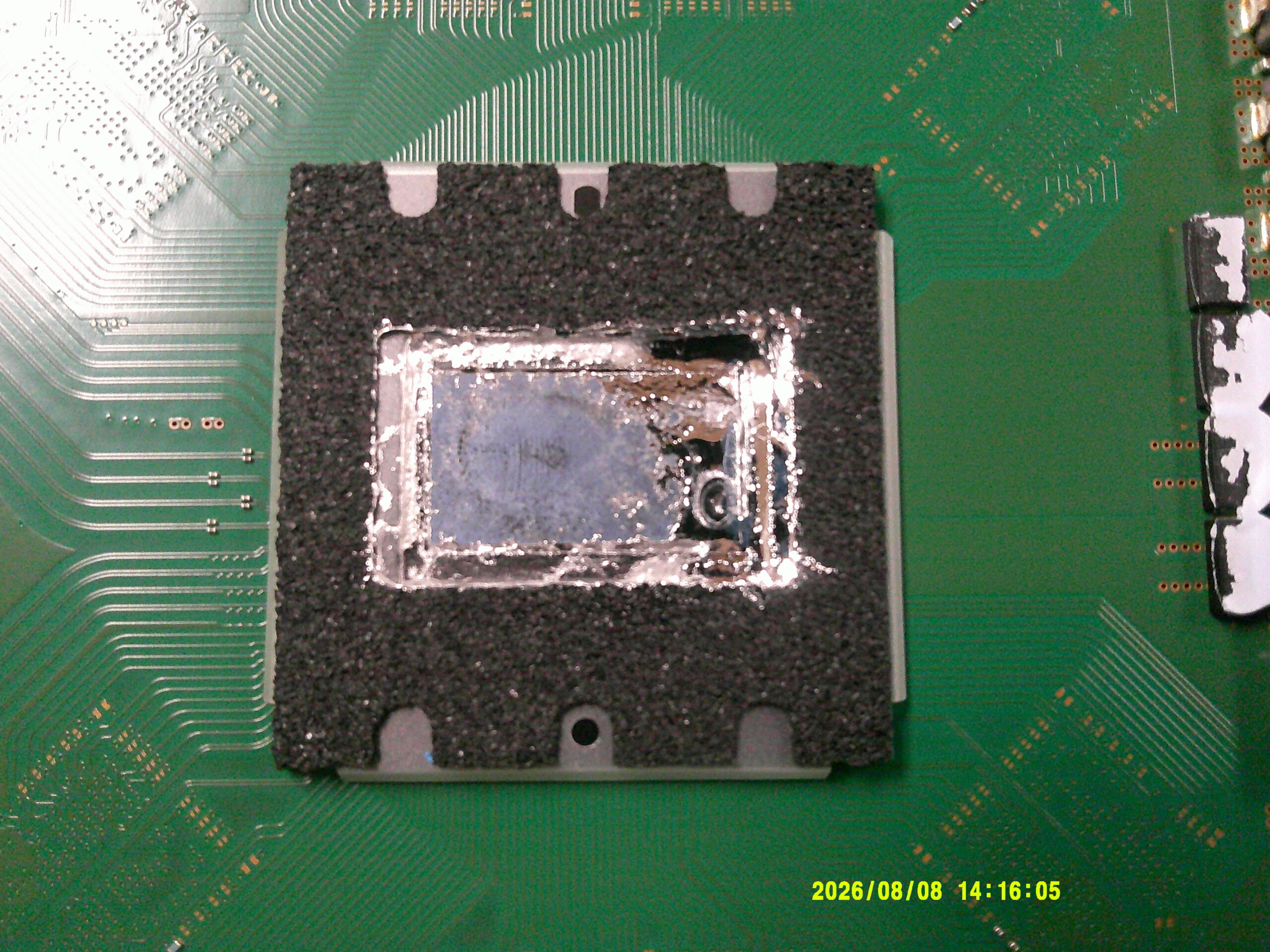

The thermal interface is part of the cooling system
Removing dust is only one part of cooling-system maintenance. Heat also has to transfer efficiently from the APU to the heatsink. Our technician records document servicing this thermal interface during console cleaning and maintenance.
For PS5 systems we have serviced the liquid-metal thermal interface where appropriate. Xbox systems use thermal compound appropriate to their cooling design. The goal is to restore proper thermal contact as part of the maintenance procedure—not to claim that new thermal material can repair a processor that is already physically damaged.
Getting your console ready for GTA VI?
If your PS5 or Xbox Series X|S has been in regular use for years and has never been internally serviced, preventive cleaning can be a sensible part of getting the system ready for more frequent or extended gaming sessions.
You do not have to wait for the console to fail before having accumulated internal dust removed and the cooling system serviced. Cleaning is preventive maintenance; it is not a promise of increased game performance or a guarantee against future hardware failure.

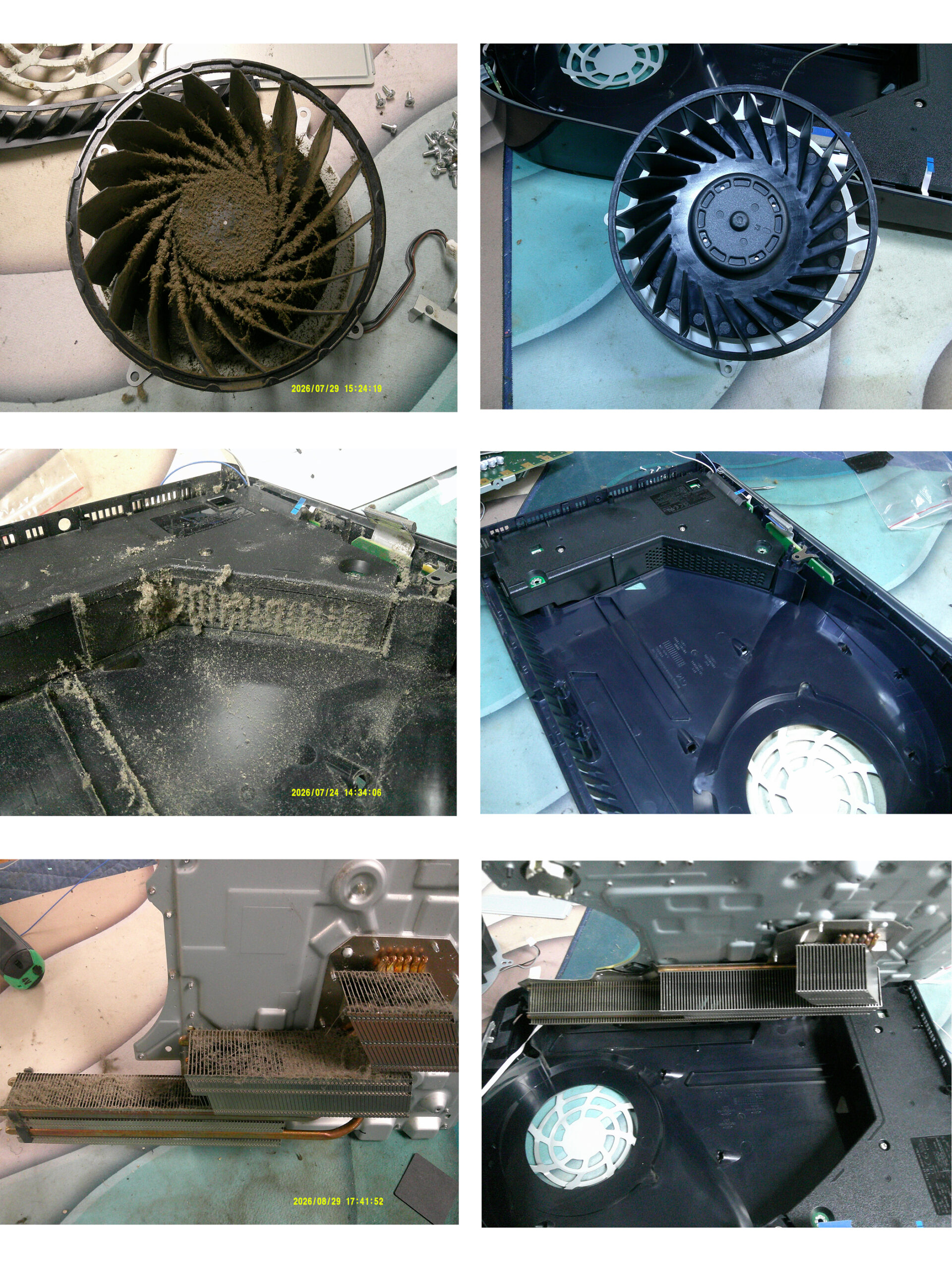

Before and after: what internal cleaning actually removes
A before-and-after comparison from similar consoles is one of the clearest ways to show what an internal cleaning accomplishes. The best comparison uses the same area of the console and approximately the same camera angle before and after service.
Cleaning cannot reverse permanent hardware damage
This distinction is important. We have inspected consoles that were internally cleaned and had their thermal interface refreshed but still had confirmed permanent APU deterioration. Restoring proper cooling conditions can improve the thermal environment, but it does not repair a processor that has already sustained permanent physical damage.
Some of our repair records describe processors with visible oxidation, cracking or burn marks consistent with long-term thermal stress. In those cases, cleaning and thermal service may be performed as part of the evaluation or stabilization process, but the existing component damage remains.
Maintenance vs. an existing hardware problem
Routine maintenance
The console is functioning and the goal is to remove accumulated internal dust, service the cooling system and refresh the appropriate thermal interface.
Overheating symptoms
If the console is shutting down, displaying warnings or behaving abnormally, cleaning may be part of the service but the underlying condition may require diagnosis.
Permanent component damage
Cleaning cannot repair a physically damaged APU, failed motherboard component or other existing electronic failure.
Abnormal contamination
Biological contamination and smoke or tar residue are different from normal dust and may require a different evaluation.
Normal dust is different from abnormal contamination
Routine dust and debris are not the same as biological contamination or smoke residue. Our repair records include consoles affected by roach contamination and sticky smoke or tar residue. These conditions can contribute to corrosion, board deterioration or continuing fan problems and cannot always be completely removed like ordinary dust.
If abnormal contamination is discovered, the condition may require a different evaluation than routine cleaning and maintenance.
Frequently asked questions
Do you have to open the console to clean it?
Yes. Replay’s cleaning and maintenance service is an internal service. The console is disassembled so accumulated dust and debris can be removed and the cooling system can be serviced.
Do you service the thermal material?
Yes. Our documented General Cleaning & Maintenance service includes servicing the thermal interface at the APU and heatsink as appropriate for the console.
Will cleaning fix an overheating console?
That depends on why the console is overheating or shutting down. Dust obstruction or poor thermal contact may be relevant, but an existing motherboard or processor failure cannot be corrected simply by cleaning the console.
Will cleaning repair an already damaged APU?
No. We have documented consoles where cleaning and restoring the thermal interface improved cooling conditions but permanent APU damage remained. Cleaning cannot reverse existing physical processor damage.
Can every dirty console be completely cleaned?
No. Normal dust is different from biological contamination and smoke or tar residue. Severe contamination can leave corrosion or sticky residue that cannot always be completely removed and may affect long-term reliability.
Is this service only for consoles that already have a problem?
No. Cleaning and maintenance can be performed as a standalone preventive service on a functioning PS5 or Xbox. You do not need to wait for a repair symptom before having the internal cooling system serviced.
